HERBISH FLOOR CHANNEL RANGE




Cleaning your Herbish Product

All Herbish® Drainage Systems surfaces are finished to a satin finish, it is important to remember that such a finish can be scratched or marked by improper treatment.

Click on the link below to view our maintenace Dos & Don'ts

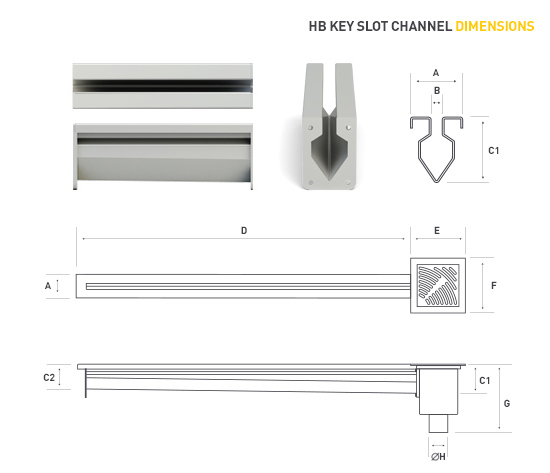

HB KEY SLOT CHANNEL RANGE
A
B
C1
C2
D
E
F
G
H
60mm
10mm
75mm
*
*
150mm
150mm
145mm
50mm/76mm*
(*) Client Specification
  1. Please supply lengths, Fall, Postion and type of outlet drain.
  2. Type of layout required e.g. "T" Section.
  3. For long Channels take into consideration transport requirements. Shorter sections can be manufactured to be assembled on-site.
  4. Type of drain outlet required: Vertical or Horizontal

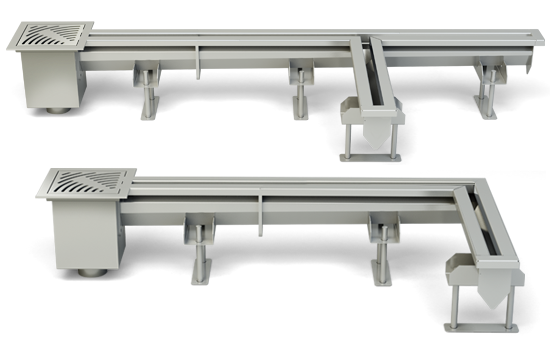

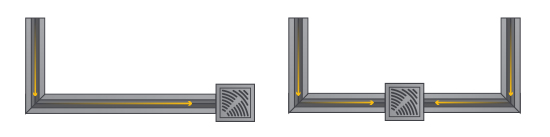

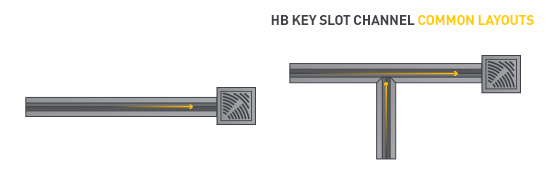

"Straight" Section "T" Section
"L" Section "U" Section

Manufactured in 3mm 304ss or 316ss depending on your requirements.
* Custom manufactured to client specification.
  • APPLICATIONS
  • MATERIALS & FINISHES
  • PERFORMANCE
  • INSTALLATION
  • • Designed for both domestic and commercial applications
  • • Attractive and discreet
  • • Can be used for Wet room and shower areas, Breweries and distilleries, Storm water management for balconies and entrances.
  • • Manufactured in 304 or 316 grade stainless steel*
  • • Excellent corrosion resistance
  • • Hygienic
  • • High flow rate performance
  • • The channel incorporates an integral fall which can be designed to the project requirements
    • Integral feet and supports to help secure positioning
