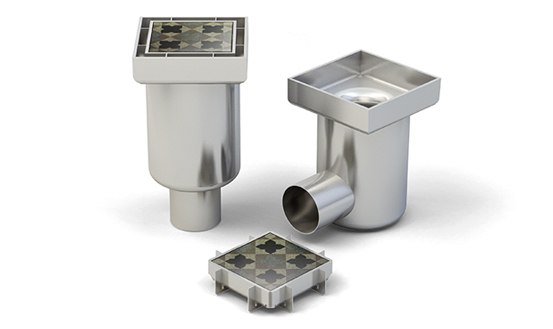

HB125VH HIDDEN FLOOR DRAIN

A Flange Size 105mm x 105mm
B Tile Area Size 75mm x 75mm
C Drain Body Diameter
90mm
D Drain Height
190mm
E Outlet Diameter 50mm/76mm*



(Special Order*)
  • APPLICATIONS
  • MATERIALS & FINISHES
  • PERFORMANCE
  • INSTALLATION
  • • Suitable for tiled and epoxy floor installations
  • • Area for tile on the cover of the drain
  • • Designed for both domestic and commercial wet room design applications
  • • Manufactured in 304 and 316 grade stainless steel
  • • A choice of horizontal or vertical outlets
  • • Supplied standard with a 50mm outlet but 76mm diameter outlets are also available.
  • • Excellent corrosion resistance
  • • Hygienic
  • • High flow rate performance
  • • SANS10400 compliant 75mm water seal
  • • Supplied with strainer
  • • No direct access to the sewer line during routine maintenance
  • • Easy to install
  • • Tamper proof fixings for the cover is standard
  • • Easy to clean and maintain
Add "Green Drain™" to your Herbish Floor Drain

Introduces the all new Green Drain™ waterless trap in its new range of green drains in South Africa. The Green Drain™ dual patent design allows for the flow of water and debris, while blocking gases, odors and pests.
